2. Product show and rack installation, fix the machine

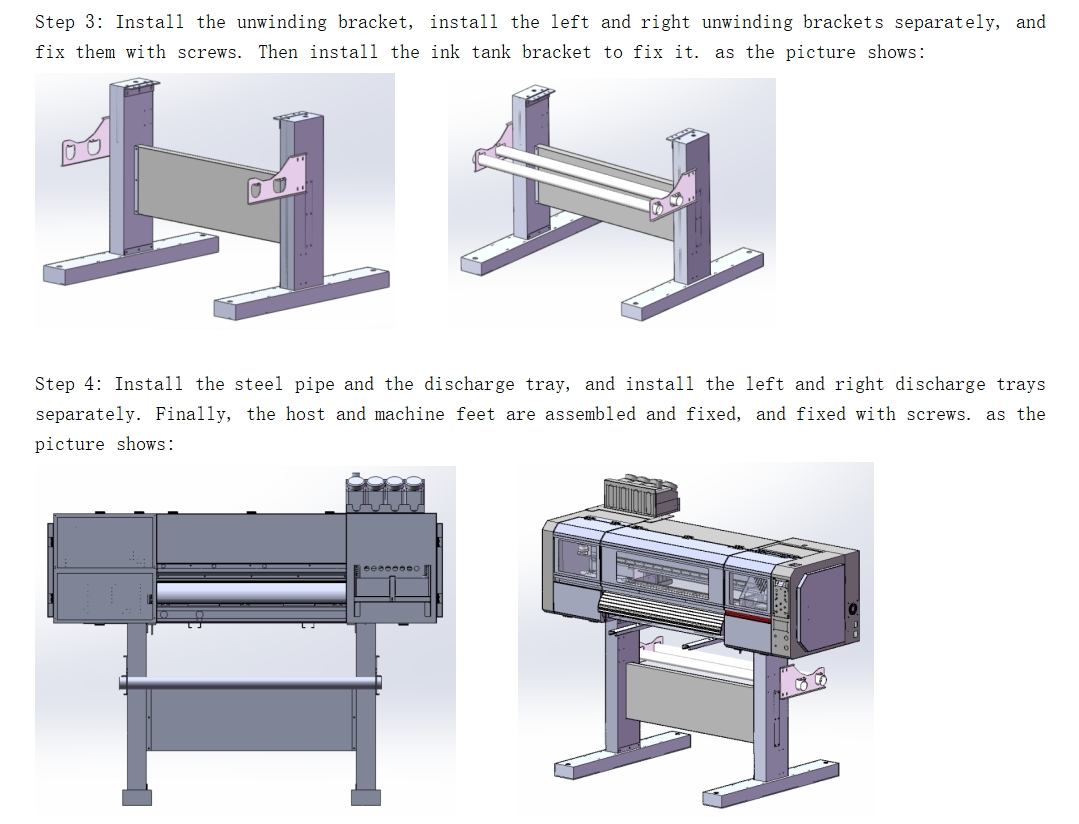

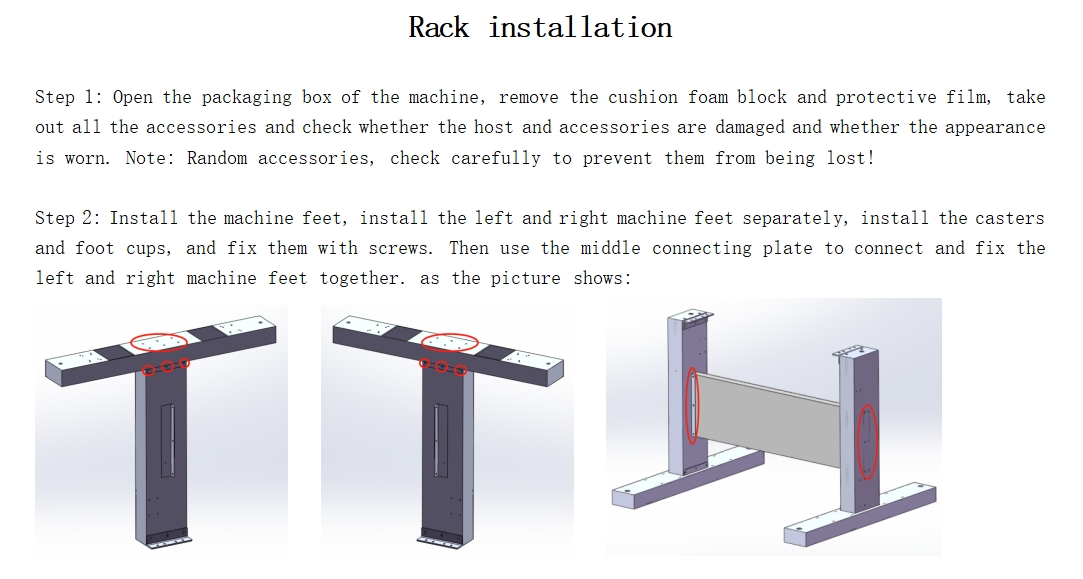

Install the foot according to the drawing or video, install the foot cup and wheel, and fix the printer.
As shown:
|

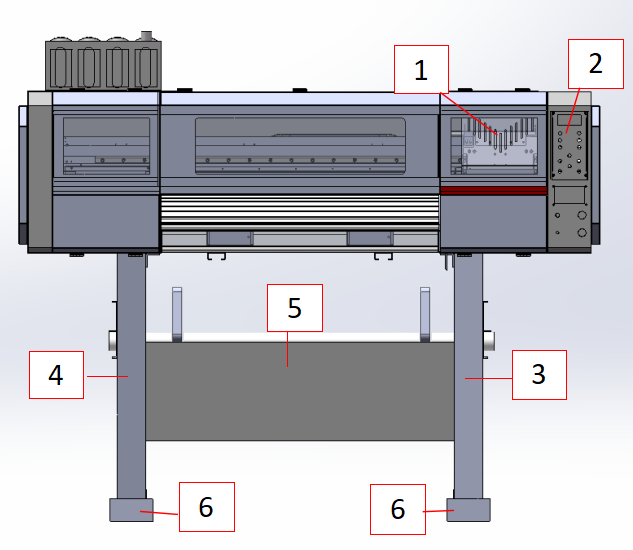

01 Trolley ink stack assembly |
02 Control panel |
03 Right machine foot |
|
04 Left machine foot |
05 Machine foot bottom beam |
06 Machine foot bottom plate |
|

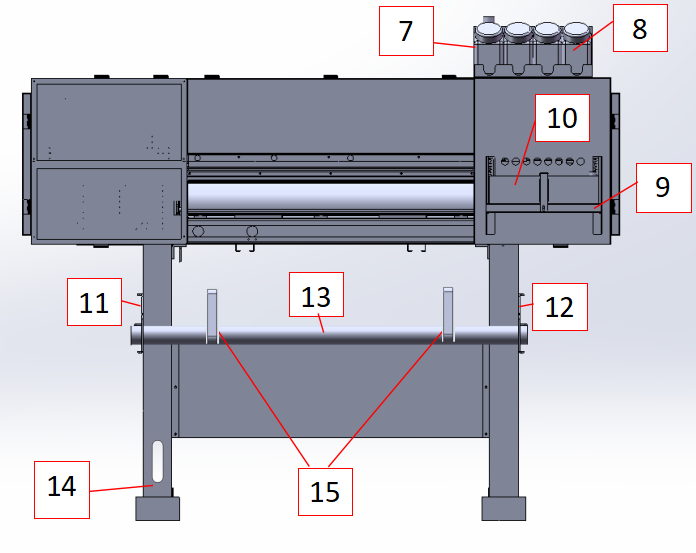

07 Ink tank holder |
08 Ink tank |
09 Ink cartridge holder |
|
10 Ink cartridge |
11 Put the material holder right |
12 Put the material holder left |
|
13 Put the material pipe |
14 Waste ink tank holder |
15 Feeder |
Refer to the following video 1 ：
Refer to the following video 2 ：
