2. Product show and rack installation, fix the machine
Install the foot according to the drawing or video, install the foot cup and wheel, and fix the printer.
If they are installed, ignore this step and go to next.

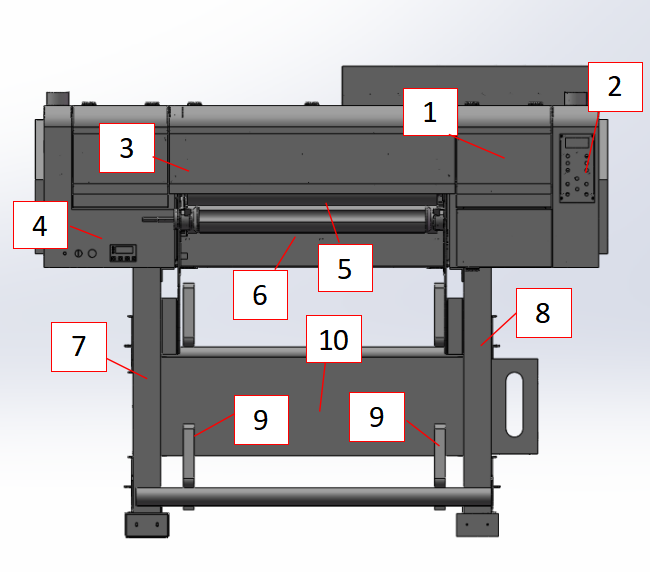

As shown:
01 Carriage ink stack assembly |
02 Control panel |
03 Rubber Roller Lifting Handle |
04 Rubber Roller Heating Controller |
05 Laminating rubber roller (heating) |
06 Stepping rubber roller |
07 Put the material holder left |
08 Put the material holder right |
09 Rewinding tray |
10 Machine foot connecting plate |

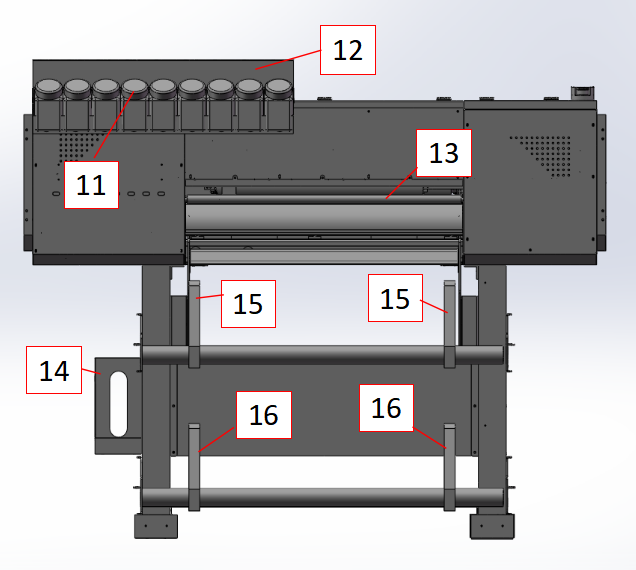

11 Ink tank |
12 Ink tank holder |
13 Material pressure rod |
14 Waste ink tank holder |
15 Rewinding tray |
16 Discharging tray |
