2. Product show and rack installation, fix the machine
Install the foot according to the drawing or video, install the foot cup and wheel, and fix the printer.
If they are installed, ignore this step and go to next.
As shown:

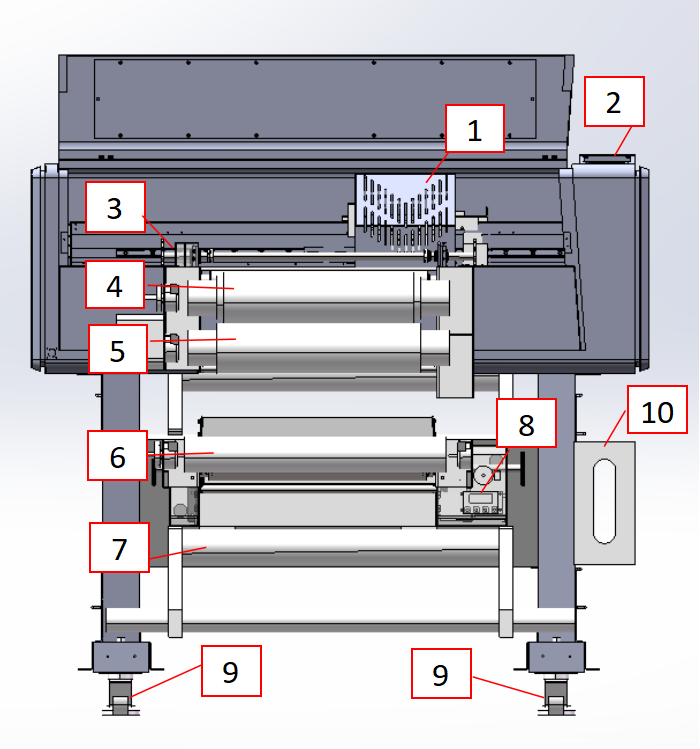

01 Carriage ink stack assembly
02 Control panel
03 Rubber Roller Lifting Handle
04 Foil or B film feeding roller
05 Foil film waste rewinding tray
06 Laminated film feeding roller
07 Finished material take-up roller
08 Laminated part controller
09 Casters and foot cups
10 Waste ink tank holder

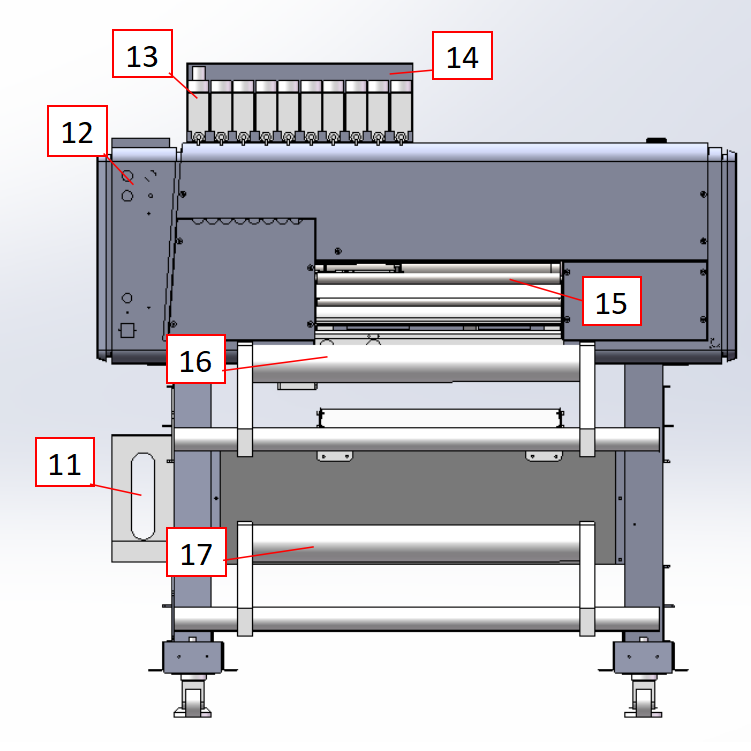

11 Waste ink tan
12 Switch panel
13 Ink tank
14 Ink tank holder
15 A film protective film stripping rod
16 A film waste rewinding tray
17 A film and Release film feeding roller
